Franklin Electric Motors
Replacement Motors for service station pumps and dispensers
56 Frame Reversible Motors
Suitable for All Makes of Pumps/Dispensers

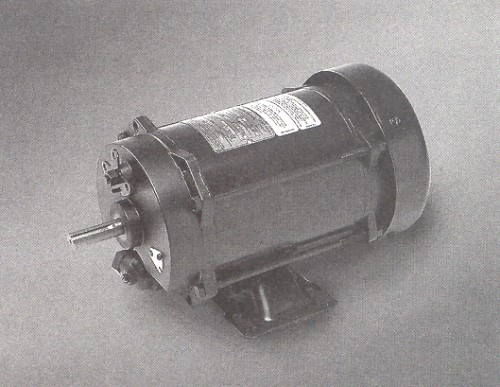

FE 56 Frame Motor
Note: These motors are cooled via an attached fan.
If the motor you are replacing does not have a fan please check the dimensions to ensure it will fit
Specifications
| Electrical |
| Voltage |
Variable - Based on Model |
| Rotation |
CW or CCW - Based on Model |
| Start |
Capacitor |
| Duty Cycle |
Continuous |
| Temperature |
40°C Ambient |
| Insulation |
Class B |
| Protection |
Thermal |
| Additional |
Centrifugal Starting Switch |
|
Optional ON-OFF Line Switch |
| Mechanical |
| Mounting |
56 Frame |
| Base |
Rigid Base Mount |
| Bearing Type |
Ball Bearing |
| Shaft |
Carbon Steel |
| Classification |
Class 1 Group D - Gasoline Vapour Atmosphere |
| Power |
1/3, 1/2, 3/4, or 1 Horsepower |
| Enclosure |
TEFC (1/3HP - TENV) |
| Additional |
Centrifugal Starting Switch |
61 Frame Reversible Motors
Suitable for Gilbarco and Tokheim Pumps/Dispensers

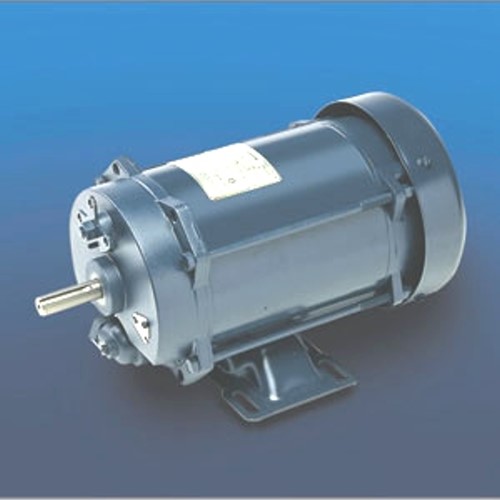

FE 61 Frame Motor
Specifications
| Electrical |
| Voltage |
Variable - Based on Model |
| Rotation |
CW or CCW - Based on Model |
| Start |
Capacitor |
| Duty Cycle |
Continuous |
| Temperature |
40°C Ambient |
| Insulation |
Class B |
| Protection |
Thermal |
| Additional |
Centrifugal Starting Switch |
|
Voltage Selection Switch |
| Mechanical |
| Mounting |
61 Frame |
| Base |
Rigid Base Mount |
| Bearing Type |
Ball Bearing |
| Shaft |
Carbon Steel |
| Classification |
Class 1 Group D - Gasoline Vapour Atmosphere |
| Power |
1/3, 1/2 Horsepower |
| Enclosure |
TEFC |
| Additional |
Centrifugal Starting Switch |
